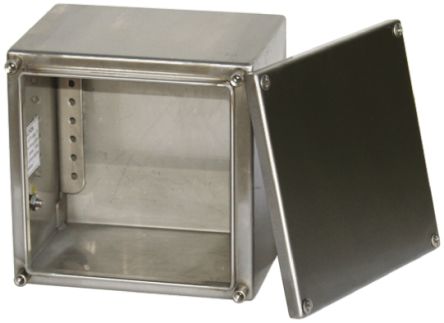

Stainless steel terminal boxes IP68

Our terminal boxes /enclosures can be produced in customer specific dimensions and are equiped with silicon seal.
Based on customer needs the enclosures can be equiped with openings for cable glands, connectors etc.

 Material:

- Stainless steel 1.4404
- Stainless steel 1.4571

Material thickness:

- From 1.25mm. Standard is 1.5mm

Temperature range:

- -20˚C to +80˚C

Certification:

- IP68
  IEC 60529:1989 (2nd Ed.) + A1:1999 + A2:2013, IP68 Corresponds 1.2 m under water for 68h

Seal:

- continous silicon seal - in whole

Surface:

- polished

Options:

- wall attachment - 4 tabs
- enclosures are machined with CNC. Optionaly the boxes can be equiped with cutouts, holes or tapped holes. Machined areas are deburred and repainted.
